LLM Workflow Architecture

02/07/2026

GraphRAG version 1.2.0

Two specialized workflows handle all LLM interactions:

LLM Call: Encapsulates the logic of calling an LLM model. The Chat Model node is provider-specific; changing providers means changing only this node. It supports a primary/fallback model pattern and structured output validation.
Utils - Calculate LLM usage: Fetches execution details via the n8n API, parses them for AI agent requests, and extracts and summarizes token usage. This is called at the end of post-processing to generate the TOKEN_USAGE_DETAILS SSE message.

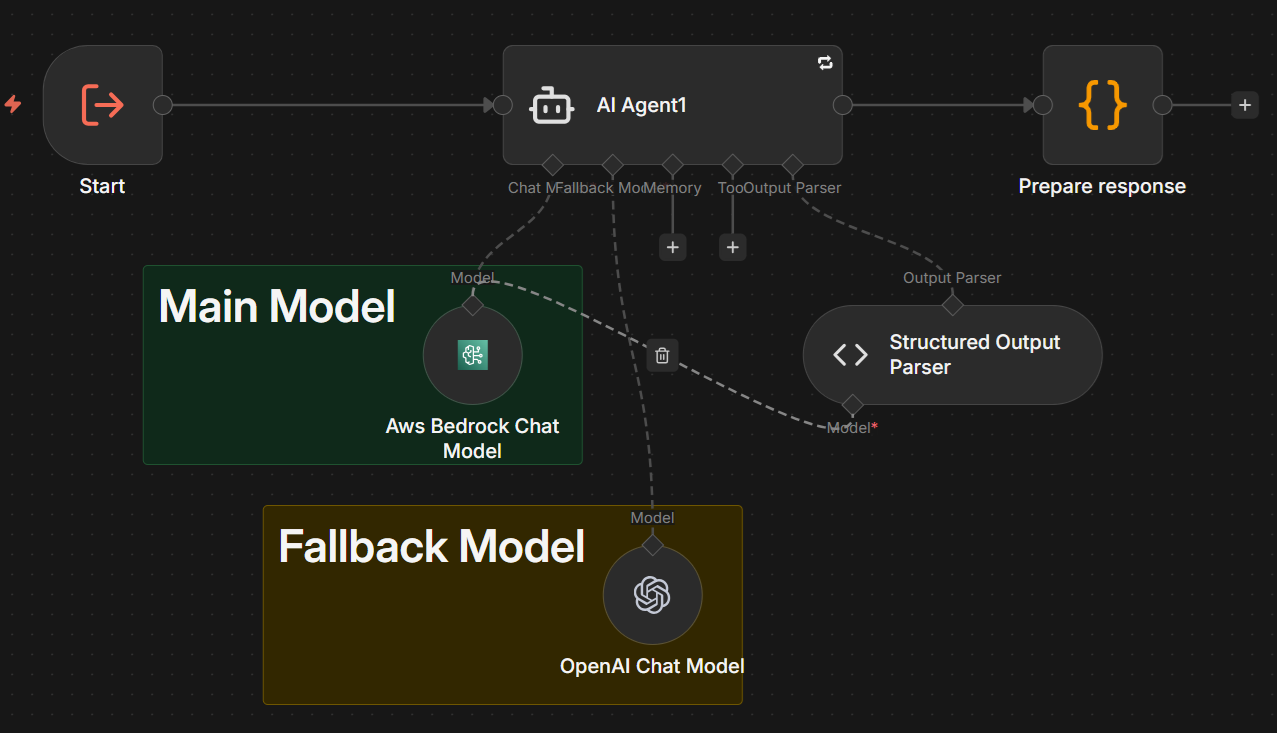

The LLM Call workflow is used to encapsulate the logic of calling an LLM model.

Since the XYZ Chat Model is provider-specific, changing the provider can only be manually done here by modifying the main and fallback model modes.

The Utils - Calculate LLM usage workflow is a utility used with LLM Call to calculate token usage.

To achieve this, an n8n API call for execution details is used; the response is parsed to extract and summarize only the token usage information.

The primary and secondary LLM models (also called Main and Fallback) are used in order to guarantee failsafe if the primary one fails. Currently they are used in LLM call and Step - GraphDB MCP - Async workflows.

If you want just to switch the primary and the secondary model:

In both LLM call and Step - GraphDB MCP - Async workflows, switch the connections from the AI agent to the Main and Fallback models. This will achieve the desired results, however, the credentials used in the two models will have confusing names. The Main model will use the name "Secondary LLM model" and the Fallback model will use the name “Primary LLM model”. In the Credentials tab the names of the two models should be switched accordingly.

The Structured Output Parser is used for serializing the LLM output into a desired JSON format using a JSON schema. It is not a mandatory node but is preferred in order to ensure the LLM output is in the requested format.

When switching primary and/or secondary models no changes are needed. The Structured Output Parser should be connected to the AI Agent node and either the primary or the secondary LLM model nodes.

Note

Some models (usually older/deprecated) can fail to serialize the LLM output, in this case an upgrade to a newer model is recommended.

The token usage for each step using an LLM as well as the total sum of tokens used for that question are calculated at the end of the post-processing phase of GraphRAG’s question answering process.

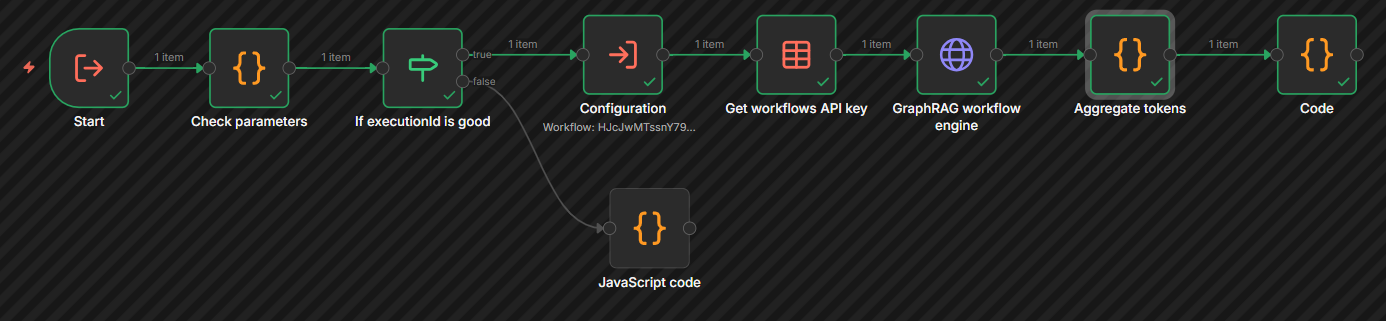

In order to do this, all details of the ongoing workflow execution are fetched via the n8n API, traced for requests to AI agents, and parsed to extract and summarize only the token usage information. This behavior can be found in the workflow Utils - Calculate LLM usage as shown below.

Above, we can see how, after the data is retrieved with the n8n API call and its parameters and execution ID are validated, the workflow retrieves the API key and uses it to find out about the token usage. The Main workflow then generates and sends a TOKEN_USAGE_DETAILS SSE message.
