Deploying to AWS

Clone the repository https://gitlab.ontotext.com/managed-services/internal-ms/m365.

Checkout the branch labelled aws.

Create an S3 Bucket and a folder inside the bucket to hold the terraform state.

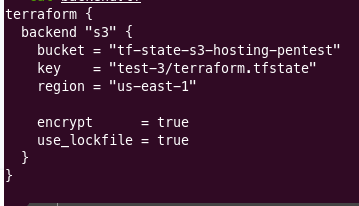

Go to 1-core and configure backend.tf file, as shown below.

Create a terraform.tfvars file and fill with the required variables. Refer to the following example:

name = "example-m365-test-3"

Run terraform apply and then and save the output as it contains necessary parameters for both 2-controllers and 3-platform.

Go to 2-controllers and start configuring backend.tf.

Create a terraform.tfvars file and populate it with the required parameters.

vpc_id                    = "vpc-0f4a991aac3442494"
eks_name                  = "iko-m365-test-3"
eks_version               = "1.34"
eks_certificate_authority = "LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURCVENDQWUyZ0F3SUJBZ0lJVjVXRHBOVTBvQzB3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TmpBM01EWXhNalUxTXpSYUZ3MHpOakEzTURNeE16QXdNelJhTUJVeApFekFSQmdOVkJBTVRDbXQxWW1WeWJtVjBaWE13Z2dFaU1BMEdDU3FHU0liM0RRRUJBUVVBQTRJQkR3QXdnZ0VLCkFvSUJBUUNVSXdVNy85cWxYWXMwdmxDN3NEWWgwRkpQU3FuVVdhajI0QUpVZFFlTS9zc2tzTnJmcWJZck5GTXQKTWxmYWp3T3RNVXBueE9Mb2Joa3RPbEJpTlc1QnJyUWJYY2xVdGZtUkVNRzk3eHBJSER5cDNIQlkvc3FmNldGeAp0TGNIdnVYbjBCYUN0N1lJdG9NMWQ1WE1xcDYvRzI4WHdHS2IzMDZLbENlYkl5N2VISTJHTkpnd1M3MVVrY2xPCkkwRElNSlNlbnNSMUoyQWlTeUx6MEd2c2NXb2hoLzNXb3FzVmlkNUNXUGRxb3h1akVZRktOeWlTb091aWVvRlAKWXJkcmdSU3pYY1BVVytzMDQyK2RjMU81d0lYaHo0VGJENnVJem4rSEVsYmRZV2plcXZoL3BoWTBIVHRqWG9kQQpaM0VPeHNNb1hxaTdLUTJ0Szd0SmQzR1BWYnRyQWdNQkFBR2pXVEJYTUE0R0ExVWREd0VCL3dRRUF3SUNwREFQCkJnTlZIUk1CQWY4RUJUQURBUUgvTUIwR0ExVWREZ1FXQkJTQ1g2QVEwMkFsVUx6blowT1FJYnpXclZVL1NEQVYKQmdOVkhSRUVEakFNZ2dwcmRXSmxjbTVsZEdWek1BMEdDU3FHU0liM0RRRUJDd1VBQTRJQkFRQitCNEo0YjdEcQpWNk0yQ3R0cVhwMTdPWStkZUZ4dWR0cmFZWU5IdzNuU2l3cE1mbUZFVGNnaTlXbUUrRm5HUXFOM1M1UzZ5bVVCCkl4YUZTdlJacUVRSzFPeFNnQXVvWlh0YXlIalpVdGFPYmFsTGpDSVEvQk5ZTnh4MVNsM0NISmU3UDgvWTZmREUKNWFuKzJjTVBNa0lTUDRMMmE2enJhVHFHc0x1d3Bwck1OZVMwOVdZZG1pRTd2cERlVHpURVdSN2JXUDlzTzJrMgowS0pMdjQvTkZCbFgrRFFEMjZlVHVzaGV1c05hYmlhcmd0ak9kUm90SkgwTzVkMFNXcjV6WUtDb1lPaXZIczhHCmk5ZmVBalJORGdSbTUxSDBnOU9mbnB1bVBRV1NqekhBYlVRbGlScjJlRWdtQ2k2eXRGZFd0eEN1VWg4N0NmdkIKY2gxcHJjUHEvOFdICi0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K"
eks_endpoint              = "https://A36AAD4B95E36C51FBBC51A0022A5532.gr7.us-east-1.eks.amazonaws.com"

storage_kms_key_id = "4bc66724-13e1-4dd2-84ac-8c30685637bf"
efs_file_system_id = "fs-0de50cf64aa587fea"

Run terraform apply.

Go to 3-platform and set up the backend.tf file.

Move to terraform.tfvars.

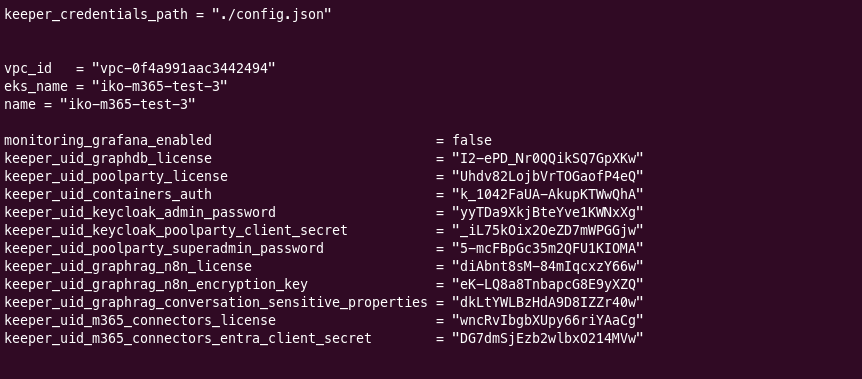

domain = "example-m365.platform.ontotext.net"

keeper_credentials_path = "./config.json"


vpc_id   = "vpc-0f4a991aac3442494"
eks_name = "example-m365-test-3"
name = "example-m365-test-3"

monitoring_grafana_enabled                            = false
keeper_uid_graphdb_license                            = "I2-ePD_Nr0QQikSQ7GpXKw"
keeper_uid_poolparty_license                          = "Uhdv82LojbVrTOGaofP4eQ"
keeper_uid_containers_auth                            = "k_1042FaUA-AkupKTWwQhA"
keeper_uid_keycloak_admin_password                    = "yyTDa9XkjBteYve1KWNxXg"
keeper_uid_keycloak_poolparty_client_secret           = "_iL75kOix2OeZD7mWPGGjw"
keeper_uid_poolparty_superadmin_password              = "5-mcFBpGc35m2QFU1KIOMA"
keeper_uid_graphrag_n8n_license                       = "diAbnt8sM-84mIqcxzY66w"
keeper_uid_graphrag_n8n_encryption_key                = "eK-LQ8a8TnbapcG8E9yXZQ"
keeper_uid_graphrag_conversation_sensitive_properties = "dkLtYWLBzHdA9D8IZZr40w"
keeper_uid_m365_connectors_license                    = "wncRvIbgbXUpy66riYAaCg"
keeper_uid_m365_connectors_entra_client_secret        = "DG7dmSjEzb2wlbxO214MVw"


alb_listener_https_arn  = "arn:aws:elasticloadbalancing:us-east-1:207567797905:listener/app/iko-m365-test-3/fddddf9fdf95c2f0/d85789e736e646bd"
backups_bucket_name     = "iko-m365-test-3-backups-207567797905"
backups_kms_key_arn     = "arn:aws:kms:us-east-1:207567797905:key/5b22b78b-cdc3-4329-b280-f81d857a6813"
eks_node_group_role_arn = "arn:aws:iam::207567797905:role/iko-m365-test-3-eks-node-group-role"

containers_registry_name = "maven.ontotext.com"


graphdb_enabled             = true
graphdb_context_path  = "/graphdb"
graphdb_storage_class = "gp3"
graphdb_storage_size  = "100Gi"
graphdb_resources = {
  requests = {
    memory = "1Gi"
  }
  limits = {
    memory = "2Gi"
  }
}
graphdb_backups_enabled  = true
graphdb_backups_schedule = "0 0 * * *"

graphdb_node_pool_enabled        = true
graphdb_node_pool_instance_types = ["m6g.xlarge"]
graphdb_node_pool_scaling_config = {
  min_size     = 1
  desired_size = 1
  max_size     = 1
}


poolparty_enabled           = true
poolparty_storage_class = "gp3"
poolparty_storage_size  = "20Gi"
poolparty_resources = {
  limits = {
    memory = "2Gi"
  }
}


poolparty_node_pool_enabled        = true
poolparty_node_pool_instance_types = ["m6g.xlarge"]
poolparty_node_pool_scaling_config = {
  min_size     = 1
  desired_size = 1
  max_size     = 1
}


poolparty_adf_enabled        = false
poolparty_graphviews_enabled = false
poolparty_workbench_enabled  = false
poolparty_mirrorapp_enabled  = false
graphrag_enabled             = false

keycloak_postgres_replicas     = 1
keycloak_postgres_storage_size = "20Gi"
keycloak_postgres_resources = {
  limits = {
    memory = "2Gi"
  }
}
keycloak_postgres_backups_enabled = true
keycloak_postgres_backup_schedule = "0 0 0 * * *"

keycloak_enabled  = true
keycloak_replicas = 1
keycloak_resources = {
  limits = {
    memory = "2Gi"
  }
}

keycloak_node_pool_enabled = true
keycloak_node_pool_scaling_config = {
  min_size     = 1
  desired_size = 1
  max_size     = 1
}
keycloak_node_pool_instance_types = ["m6g.large"]

elasticsearch_enabled = true

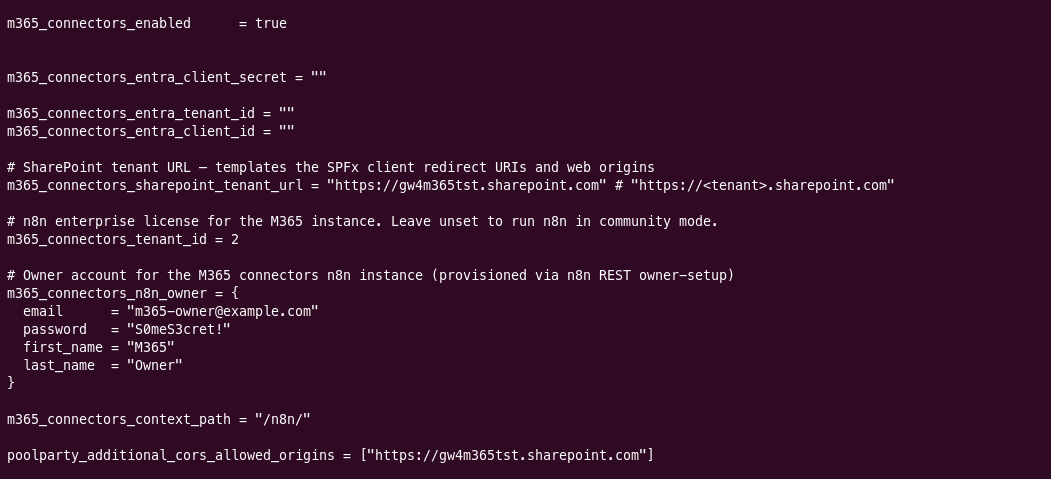

m365_connectors_enabled      = true


m365_connectors_entra_client_secret = ""

m365_connectors_entra_tenant_id = ""
m365_connectors_entra_client_id = ""

# SharePoint tenant URL — templates the SPFx client redirect URIs and web origins
m365_connectors_sharepoint_tenant_url = "https://gw4m365tst.sharepoint.com" # "https://<tenant>.sharepoint.com"

# n8n enterprise license for the M365 instance. Leave unset to run n8n in community mode.
m365_connectors_tenant_id = 2

# Owner account for the M365 connectors n8n instance (provisioned via n8n REST owner-setup)
m365_connectors_n8n_owner = {
  email      = "m365-owner@example.com"
  password   = "S0meS3cret!"
  first_name = "M365"
  last_name  = "Owner"
}

m365_connectors_context_path = "/n8n/"

poolparty_additional_cors_allowed_origins = ["https://gw4m365tst.sharepoint.com"]

storage_kms_key_id = "4bc66724-13e1-4dd2-84ac-8c30685637bf"
subnet_private_ids = [
  "subnet-0391fdfdc2b419bb3",
  "subnet-04c2c3cba9d95fe87",
  "subnet-053f2285a8d89ea09",
]

eks_certificate_authority = "LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURCVENDQWUyZ0F3SUJBZ0lJVjVXRHBOVTBvQzB3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TmpBM01EWXhNalUxTXpSYUZ3MHpOakEzTURNeE16QXdNelJhTUJVeApFekFSQmdOVkJBTVRDbXQxWW1WeWJtVjBaWE13Z2dFaU1BMEdDU3FHU0liM0RRRUJBUVVBQTRJQkR3QXdnZ0VLCkFvSUJBUUNVSXdVNy85cWxYWXMwdmxDN3NEWWgwRkpQU3FuVVdhajI0QUpVZFFlTS9zc2tzTnJmcWJZck5GTXQKTWxmYWp3T3RNVXBueE9Mb2Joa3RPbEJpTlc1QnJyUWJYY2xVdGZtUkVNRzk3eHBJSER5cDNIQlkvc3FmNldGeAp0TGNIdnVYbjBCYUN0N1lJdG9NMWQ1WE1xcDYvRzI4WHdHS2IzMDZLbENlYkl5N2VISTJHTkpnd1M3MVVrY2xPCkkwRElNSlNlbnNSMUoyQWlTeUx6MEd2c2NXb2hoLzNXb3FzVmlkNUNXUGRxb3h1akVZRktOeWlTb091aWVvRlAKWXJkcmdSU3pYY1BVVytzMDQyK2RjMU81d0lYaHo0VGJENnVJem4rSEVsYmRZV2plcXZoL3BoWTBIVHRqWG9kQQpaM0VPeHNNb1hxaTdLUTJ0Szd0SmQzR1BWYnRyQWdNQkFBR2pXVEJYTUE0R0ExVWREd0VCL3dRRUF3SUNwREFQCkJnTlZIUk1CQWY4RUJUQURBUUgvTUIwR0ExVWREZ1FXQkJTQ1g2QVEwMkFsVUx6blowT1FJYnpXclZVL1NEQVYKQmdOVkhSRUVEakFNZ2dwcmRXSmxjbTVsZEdWek1BMEdDU3FHU0liM0RRRUJDd1VBQTRJQkFRQitCNEo0YjdEcQpWNk0yQ3R0cVhwMTdPWStkZUZ4dWR0cmFZWU5IdzNuU2l3cE1mbUZFVGNnaTlXbUUrRm5HUXFOM1M1UzZ5bVVCCkl4YUZTdlJacUVRSzFPeFNnQXVvWlh0YXlIalpVdGFPYmFsTGpDSVEvQk5ZTnh4MVNsM0NISmU3UDgvWTZmREUKNWFuKzJjTVBNa0lTUDRMMmE2enJhVHFHc0x1d3Bwck1OZVMwOVdZZG1pRTd2cERlVHpURVdSN2JXUDlzTzJrMgowS0pMdjQvTkZCbFgrRFFEMjZlVHVzaGV1c05hYmlhcmd0ak9kUm90SkgwTzVkMFNXcjV6WUtDb1lPaXZIczhHCmk5ZmVBalJORGdSbTUxSDBnOU9mbnB1bVBRV1NqekhBYlVRbGlScjJlRWdtQ2k2eXRGZFd0eEN1VWg4N0NmdkIKY2gxcHJjUHEvOFdICi0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K"
eks_endpoint              = "https://A36AAD4B95E36C51FBBC51A0022A5532.gr7.us-east-1.eks.amazonaws.com"

# keycloak_poolparty_realm_json_path = "./poolparty-realm.json"

platform_charts_timeout = 900

Ensure that the Keeper configuration file keeper_credentials_path is configured and that the correct secret UIDs are specified.

Enter the following values with values from the SharePoint Automation script output:

Replace poolparty_additional_cors_allowed_origins with the GWP base url to set up the CORS whitelist rules.

Replace m365_connectors_sharepoint_tenant_url with the correct SharePoint tenant, the format is https://<tenant_name>.sharepoint.com.

Select terraform apply.
