Architecture

Graphwise for SharePoint is a SharePoint Framework (SPFx) solution comprised of the Graphwise for SharePoint Administration web part, the Graphwise for SharePoint Search web part, and the Graphwise for SharePoint Command Bar and Views extension.

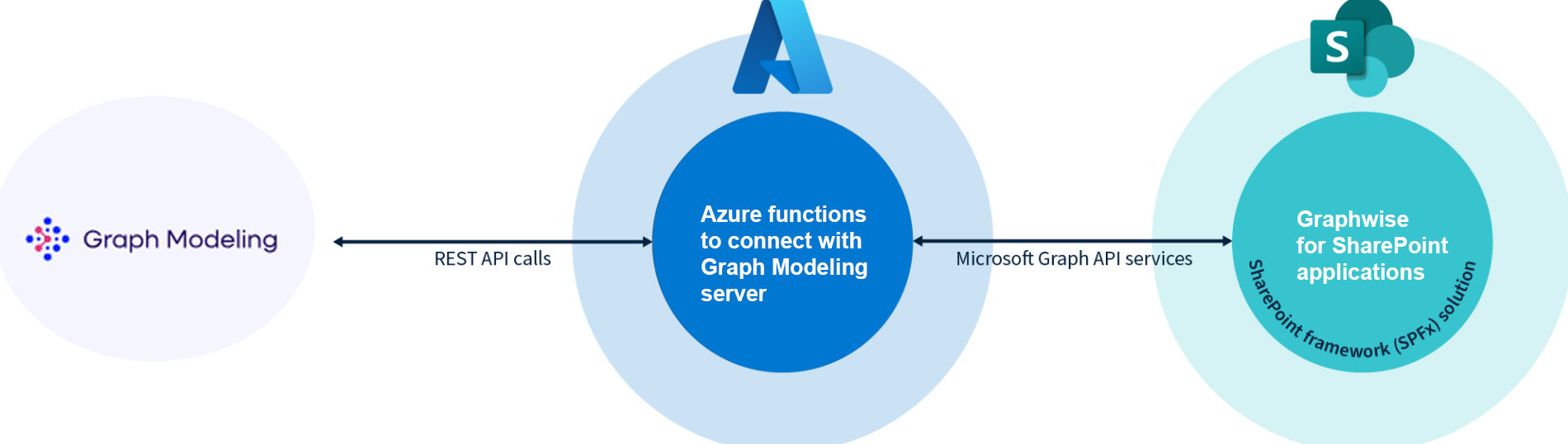

It communicates with SharePoint via REST API and Graph API services, and with the Graph Modeling server via functions deployed in Microsoft Azure.

Site admins can use the Graphwise for SharePoint Administration web part to set up Graphwise for SharePoint. For example, they can connect SharePoint document libraries and lists to a Graph Modeling taxonomy, set tagging parameters, or manage connection details and settings. For more information, refer to the Connecting Content to a Taxonomy.

The Command Bar and Views extension displays the Graphwise for SharePoint UI controls and adjusts views in the SharePoint document libraries and lists connected to Graphwise for SharePoint. These UI controls allow SharePoint users to tag content in document libraries and lists manually or automatically. For more information, refer to Tagging Content.Tagging Content

Graphwise for SharePoint uses Azure Functions to communicate with the Graph Modeling server. Every function has the same configuration properties. Azure functions communicate with SharePoint using Graph API services and client-side object model (for list attachments only).
