Deleting Manually Created Snapshots

19/06/2026

Manual snapshots of your Graph Modeling project or system repositories can be deleted. It is also possible to delete manually created restore snapshots.

Note

Automatic snapshots (those which display system in the User column on the Snapshot Dashboard) cannot be deleted. For more information on how to configure automatic snapshots, refer to The Snapshot Configuration Dialog.

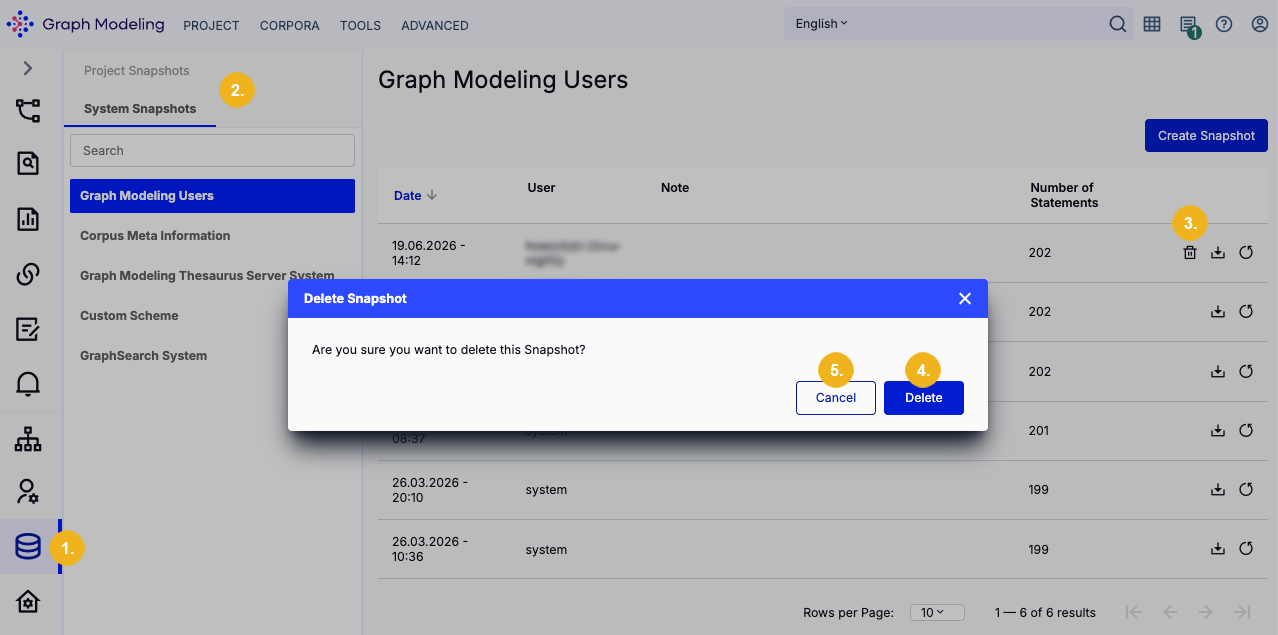

To delete a snapshot:

  1. Open the Snapshot Dashboard (1).

  2. On the left, select Project Snapshots or System Snapshots (2).

  3. Select a project respectively a system repository for which you want to delete snapshots.

  4. Click the bin icon (3) to open the Delete Snapshot dialog.

  5. On the Delete Snapshot dialog you will be prompted to confirm the deletion with by clicking Delete (4). If you decide not to delete the selected snapshot click Cancel (5).
