M365 Connectors Deployment Overview

28/07/2026

Connectors 1.1 // GW4M365

This section provides high-level guidance for deploying and configuring the GW4M365 Connector for Graph Modeling. It is intended to support technical evaluation, environment preparation and deployment planning, but not a release-specific installation runbook.

The connector integrates SharePoint with the Graphwise Platform enabling users to work with documents, libraries, metadata, semantic tags, and search capabilities through SharePoint web parts. Integration workflows coordinate enrichment, classification, and metadata updates between Microsoft Graph and the Graphwise Platform.

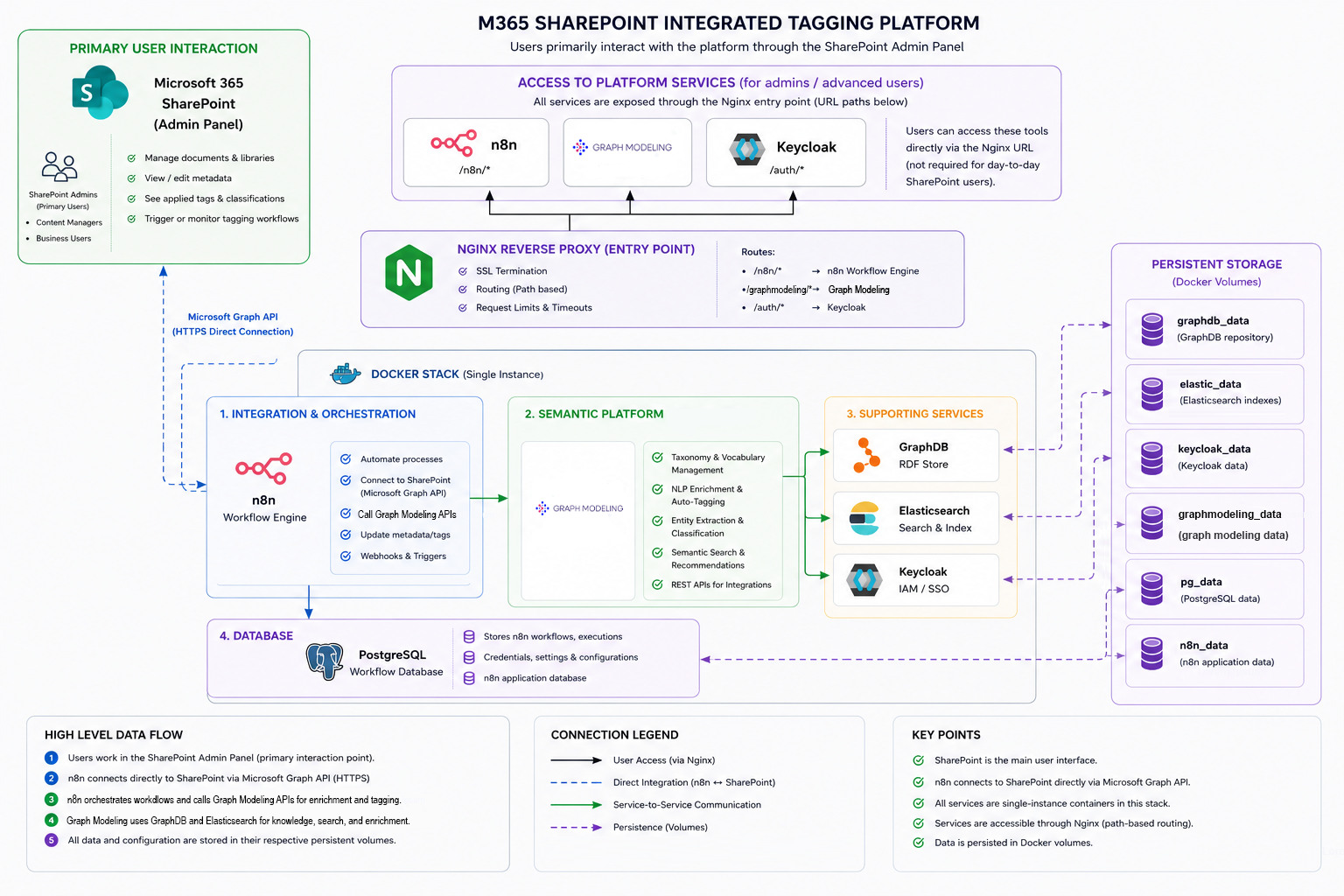

The Graphwise Connector integrates SharePoint with a set of platform services supporting content classification, semantic enrichment, metadata management, and search. The following components form the core solution architecture:

SharePoint serves as the primary user interface for administrators, content managers and business users.
The connector communicates with SharePoint through the Microsoft Graph API over HTTPS.
The n8n workflow engine orchestrates SharePoint operations, invokes Graph Modeling services and updates supported metadata and tags.
Graph Modeling provides taxonomy and vocabulary management, semantic enrichment, classification and search-related services.
Supporting services provide authentication and single sign-on (Keycloak), search and indexing (Elasticsearch), knowledge storage (GraphDB) and application persistence (PostgreSQL).
Administrative and advanced platform functionality is only available where enabled and governed by the agreed access model.

The approved deployment package is provided separately. Depending on the agreed implementation scope and release version, it may include the following:

Package or document	Purpose	Delivery method
Admin web part (.sppkg)	Connector administration and configuration in SharePoint	Secure package delivery
Command-bar web part (.sppkg)	User actions for supported tagging and metadata workflows	Secure package delivery
Search web part (.sppkg)	Search experience for authorized SharePoint content	Secure package delivery
Deployment automation	Automates approved setup and customer-specific configuration	Secure package delivery
Workflow definitions	Connector workflows used by the integration and orchestration service	Secure package delivery
Licence and configuration artifacts	Required product licence files and environment-specific configuration	Secure package delivery
Architecture diagram	Logical view of solution components and data flows	Included in this guide
Release and installation notes	Version-specific requirements, known limitations and implementation notes	Provided with release
